• Wide range of flexibility for pallet and heavy-duty storage needs
• Stocking vertically and horizontally maximizes available space without crushing inventory, while having the ability to access each individual load
• Install quickly without tools
• Re-adjusts easily for specific applications
• Components – beams and frames
• Variety of accessories available; safety bars, row spacers, wall ties, wire mesh decks, shelf supports, dividers, post protectors, etc.

• Front to back rails replace standard beams to support pallets
• Lift trucks access pallets by driving into lanes
• DRIVE-IN SYSTEM
  • Pallet loading and retrieval is from the same aisle
  • Used where last in/first out principle is acceptable
  • Ideal for stocking a single designated product per tunnel
  • Ideal to maximize storage space against a wall
• DRIVE-THRU SYSTEM
  • Pallet loading and retrieval can be from aisles at either end
  • Used where first in/first out principle is desirable
  • Ideal for faster moving products per tunnel
• Components: load rails, guide rails, support arms, pallet stops

• High density storage with good selectivity
• Multiple pallets are stored on a gravity-fed cart system, allowing retrieval of the pallets from the face of the rack
• The carts support the pallets allowing for some variation in pallet size and weight
• Systems are custom designed as 2 to 6 pallets deep
• Normally used against a wall or in back-to-back rows
• Faster retrieval time – lift trucks don’t have to travel down Drive-In tunnels or secondary aisles.
• Less damage to product and rack. Only front pallet and rack frame is accessible to lift truck impact

• Stationary rack-supported structure with multiple shelf levels
• Each shelf level has roller tracks and dividers suitable for cartons and small containers
• Clip on shelves adjust for varying box heights and snap in rollers are available for varying box widths
• The shelf levels are sloped to allow the product to flow (roll) from the loading area to the picking area
• Ideal for high activity distribution centres and allowing “multilane order” picking

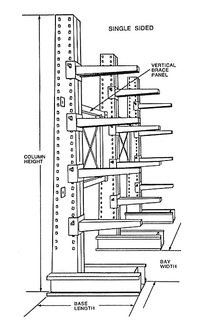

• Offers a simple, well-engineered solution to difficult storage problems for: bars, tubes, angles, channels, extrusions, sheets, lumber and more
• All welded single or double-sided columns come complete with base
• Tapered columns eliminate rack deflection into the aisles
• Tapered design ensures maximum strength where it is most required, at the base of the column and the root of the arm
• Tapered arm prevents deflection below a horizontal level
• Arms easily adjust to any height on 3 inch centers
• System allows for easy access to products without costly skids, pallets or fork entry devices
• One piece, all welded vertical brace panel for easy assembly
• Accessories available; flat plate end stops, removable pipe and socket, wedge stops, trays, guide rail, and guide entries.

Components:

• Columns – single or double sided, 4' to 40' high. Capacity 4,000 lbs. to 100,000 lbs. per side
• Arms – 1' to 8' long. Capacity 1,000 lbs. to 8,000 lbs. each
• Braces

• Provide added protection to individual rack posts
• Helps reduce the possibility of rack damage
• We offer Cogan rack guards and custom AIM heavy duty rack guards

• For new and existing racks
• Quickly and easily installed by 1 person
• Strong and economical
• Clean, safe and maintenance free
• Sprinkler friendly and fire resistant
• Specify inverted u-channel to stop debris accumulation

For additional information please call us or visit our suppliers websites.
